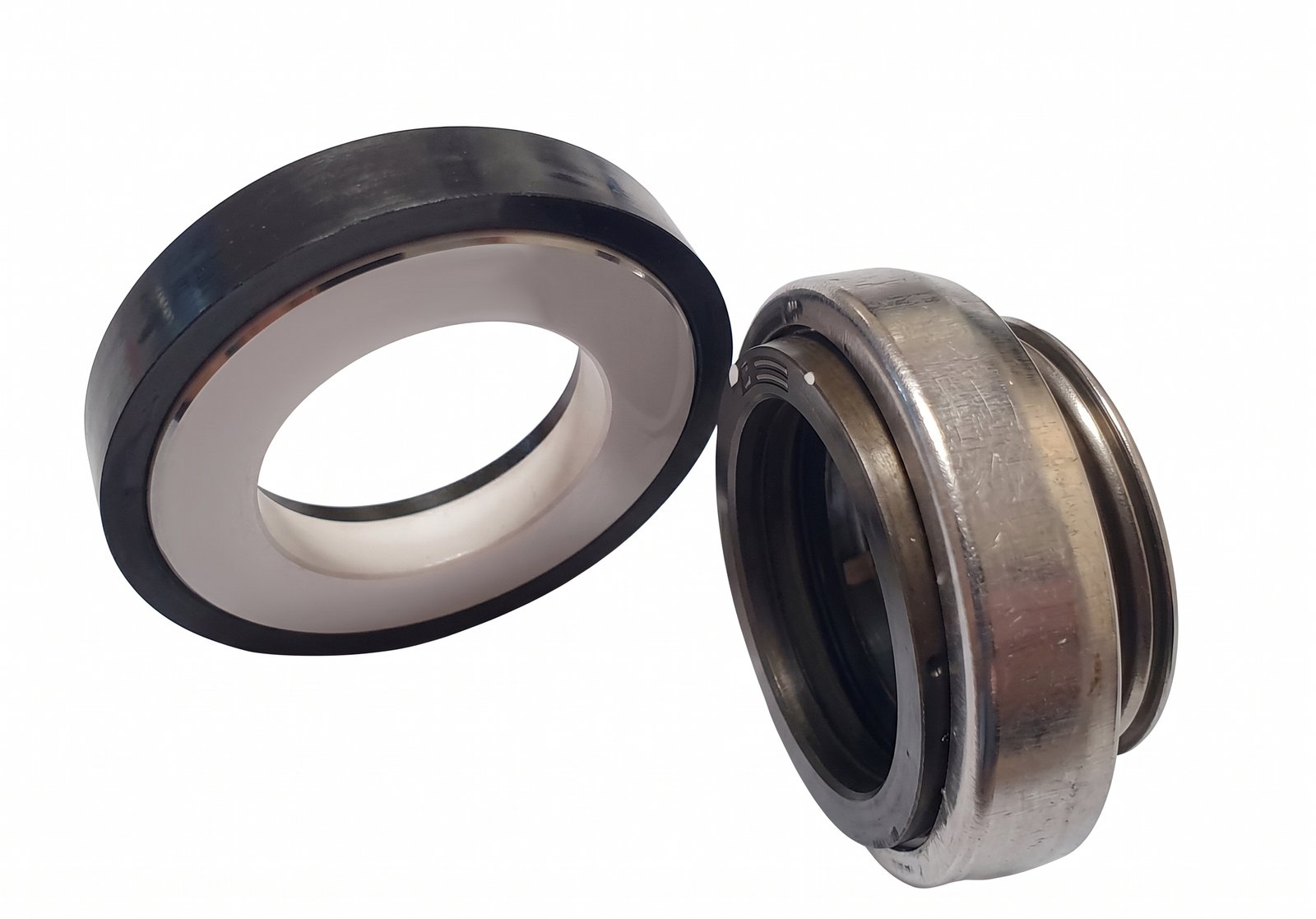

301 Single Spring Mechanical Seal | Replacement for EagleBurgmann BT-AR
Short Description
The Formax 301 is a compact, single-spring elastomer bellows mechanical seal offered as a replacement for selected EagleBurgmann BT-AR configurations.
Its single-seal, unbalanced design operates independently of shaft rotation direction.
Material options are available for compatible water, oil and other fluid-handling applications. Replacement fit must be verified against the existing seal dimensions and operating conditions.
- Product Overview
The 301 mechanical seal uses a rotating elastomer bellows and a single spring to maintain contact between the seal faces. The bellows provides secondary sealing and transmits torque to the rotating assembly, while its flexibility allows limited movement of the rotating seal face.
The compact, unitised rotating assembly simplifies handling and installation in compatible equipment. Selection should consider the shaft diameter, stationary seat dimensions, installed working height and material combination.
- Design Features
| Feature | Description |
|---|---|
| Seal Arrangement | Single mechanical seal |
| Spring Design | Single spring |
| Balance | Unbalanced |
| Rotation | Independent of shaft rotation direction |
| Bellows Design | Rotating elastomer bellows for secondary sealing and torque transmission |
| Construction | Compact component seal with a unitised rotating assembly |
| Replacement Reference | Selected EagleBurgmann BT-AR configurations, subject to verification |
- Operating Parameters
| Parameter | Catalogue Specification |
|---|---|

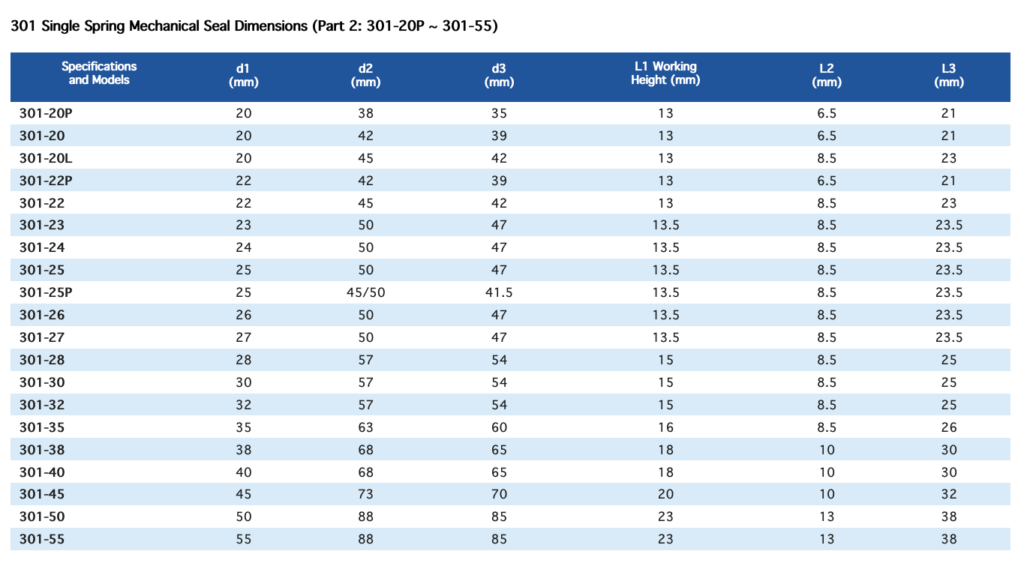

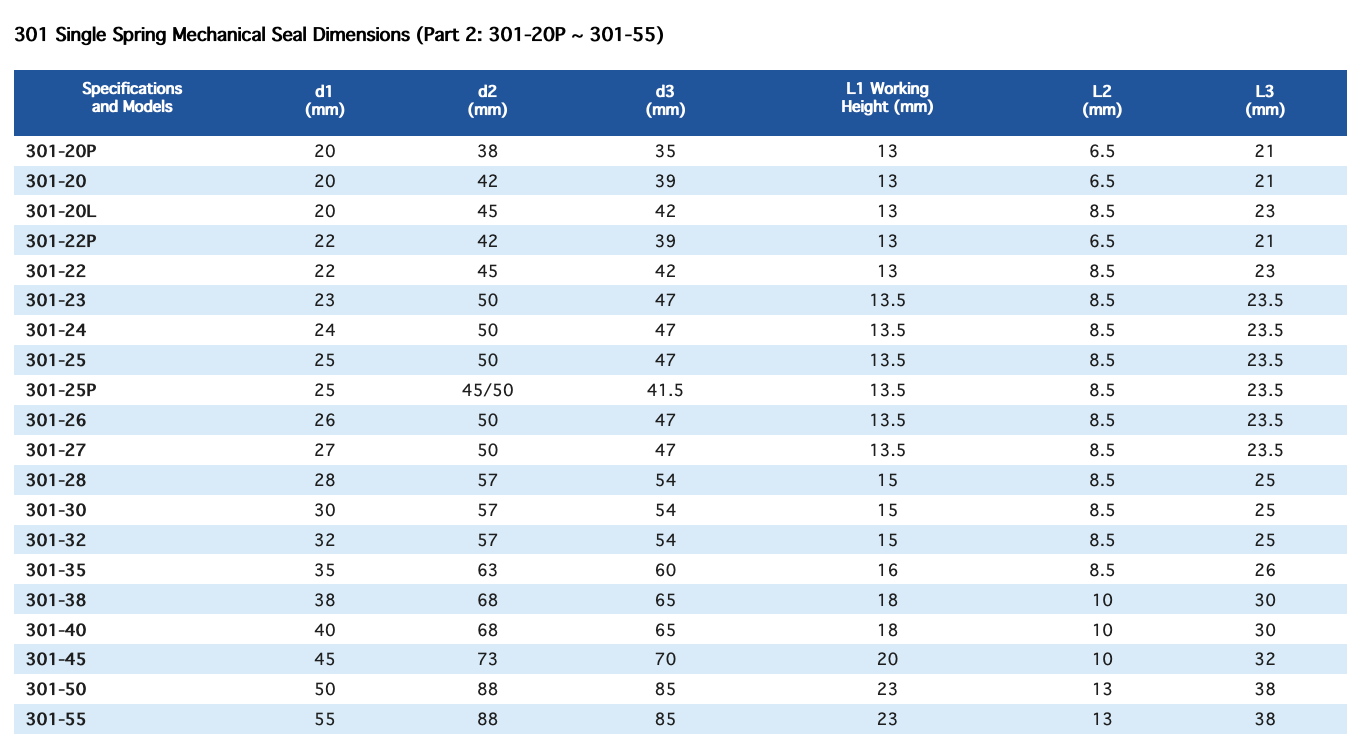

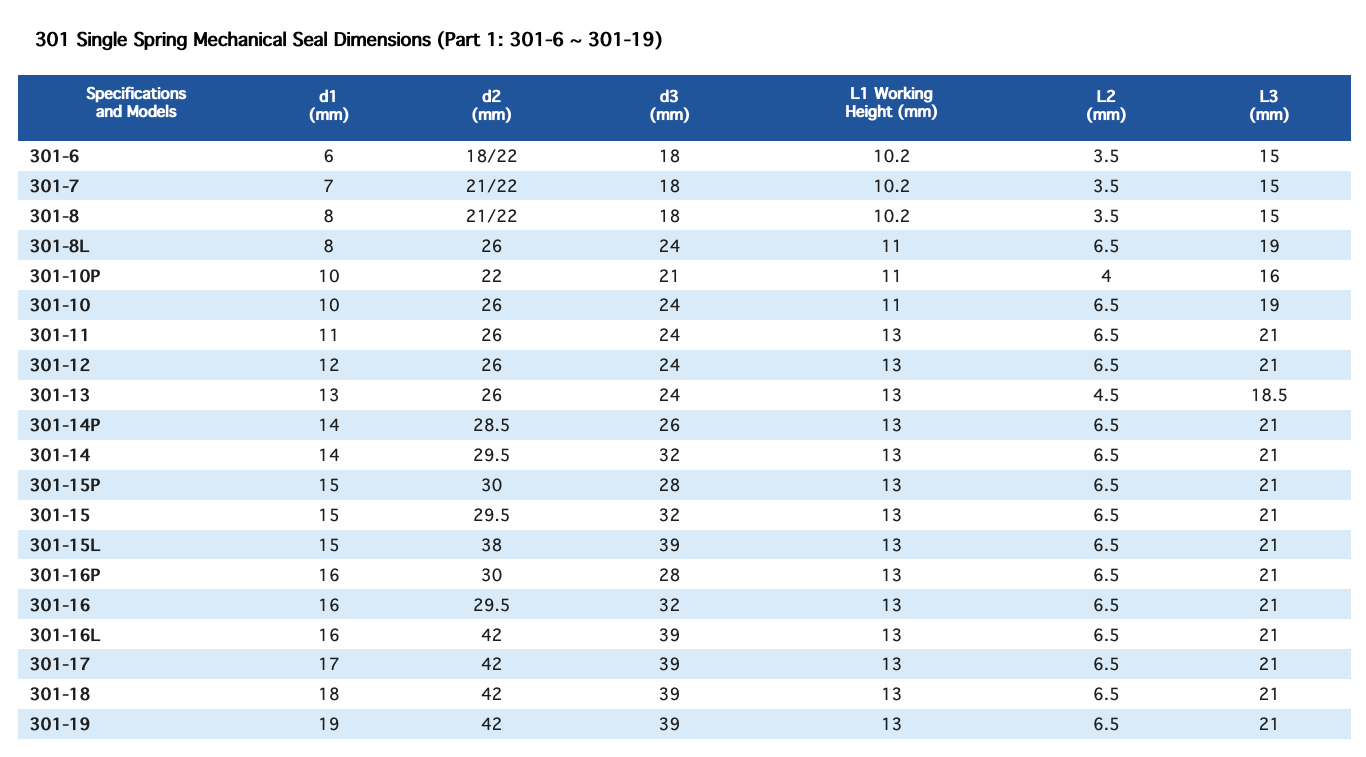

| Shaft Diameter | 6–55 mm; selected sizes and dimensional variants |
| Operating Temperature | −20 to +120°C / −4 to +248°F |
| Maximum Pressure | 0.6 MPa / 6 bar / approximately 87 psi |
| Maximum Sliding Velocity | 10 m/s / approximately 33 ft/s |
Operating limits depend on the fluid, seal size, material combination and installation conditions. Maximum temperature, pressure and speed values must not be assumed to apply simultaneously.
- Material Options

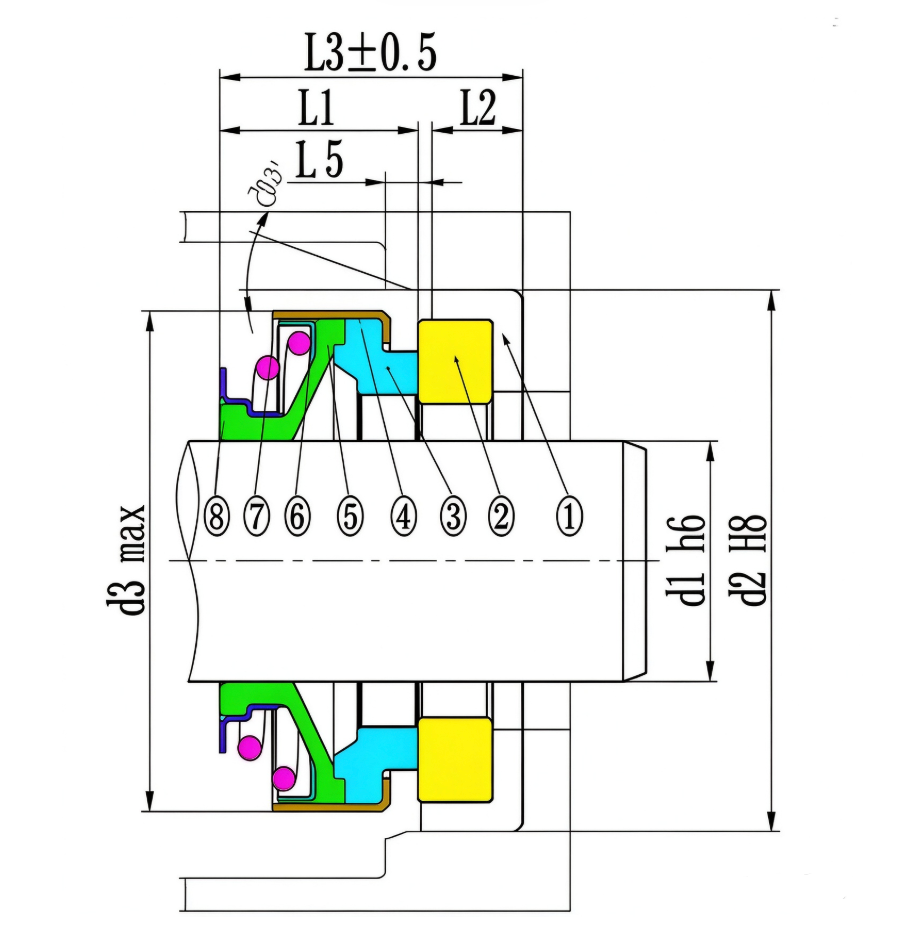

| No. | Component | Available Materials |
|---|---|---|
| 1 | Secondary Sealing Ring | NBR, FKM/FPM, HNBR |
| 2 | Stationary Seat | Silicon carbide, aluminium oxide ceramic, cemented carbide |
| 3 | Rotating Seal Face | Carbon graphite, silicon carbide, cemented carbide |
| 4 | Rotating Face Holder | Stainless steel 304 or 316 |
| 5 | Elastomer Bellows | NBR, FKM/FPM, HNBR |
| 6 | Retaining Ring | Stainless steel 304 or 316 |
| 7 | Spring | Stainless steel 304 or 316 |
| 8 | Spring Seat | Stainless steel 304 or 316 |
Material availability and suitability must be confirmed for the selected configuration. Provide the fluid composition, operating temperature and solids content when requesting a quotation.
- Typical Applications
| Application | Typical Equipment |
|---|---|
| Clean-Water Handling | Clean-water pumps and pipeline pumps |
| Water Circulation | Circulating pumps and temperature-control pumps |
| Municipal Water Supply | Compatible water supply and distribution equipment |
| Wastewater Treatment | Suitable pumps and submersible mixing equipment, following a review of solids and duty |
| General Fluid Handling | Compatible rotating equipment within the selected material and operating limits |
Water, oils and mildly alkaline fluids may be considered following a material compatibility review. Food-processing applications require separate verification of material suitability and any applicable food-contact requirements.
- EagleBurgmann BT-AR Replacement Compatibility
The 301 series is offered for selected EagleBurgmann BT-AR replacement applications. Confirm the complete installation dimensions and material specification before ordering.
Different variants may share the same shaft diameter while using different stationary seat dimensions or working heights. Compatibility cannot be established by the shaft diameter or model name alone.
For a replacement check, provide:
- Complete existing seal designation.
- Shaft or sleeve diameter.
- Stationary seat diameter and thickness.
- Rotating assembly dimensions and installed working height.
- Fluid, pressure, temperature and shaft speed.
- Required quantity and any available drawings or photographs.
Request a Quote
Need a replacement for your BT-AR seal? Send the existing seal designation, installation dimensions and operating conditions to Formax Fluid for configuration review and quotation.
